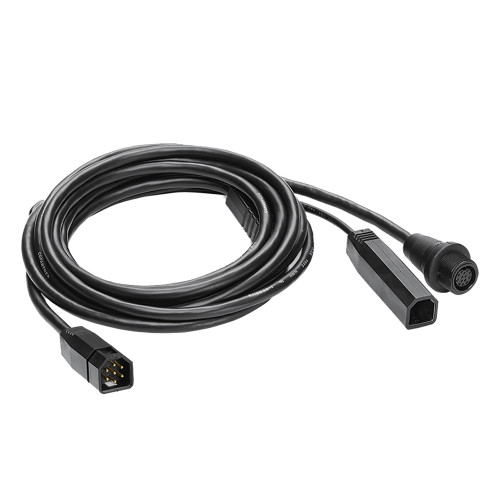

HUMMINBIRD 9-M360-2-DDI-Y - MEGA 360 & 2D/MDI 7-PIN Y-CABLE

9-M360-2-DDI-Y - MEGA 360 & 2D/MDI 7-Pin Y-Cable

This Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.

• Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
• For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
• This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.
• Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
• 30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
• 10' (3 m) cable on the MEGA 360 side
• 1-Year Limited Warranty
